Confined Space Work & Rescue: Personnel Winch (Model 142)

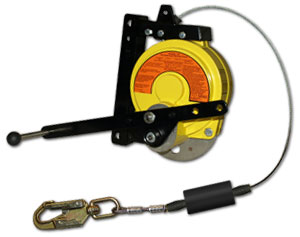

Personnel Winch

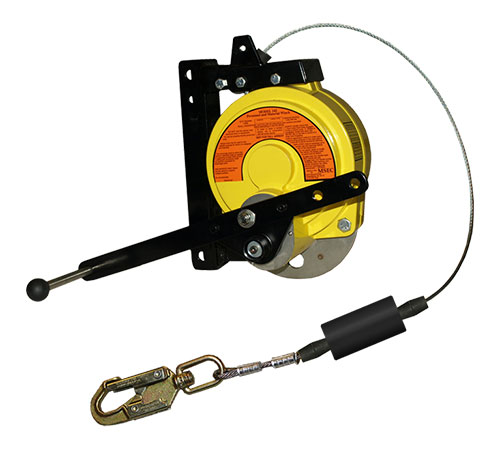

Click on the picture to enlarge

Personnel Winch is designed to be used as a primary work line for lowering and raising of personnel in confined space or as a retrieval device should an emergency occur. Designed with a 30:1 mechanical advantage, allowing for easy retrieval capabilities. Features two braking systems:

  • Brake in case of freewheeling effect
  • Friction brake system that engages during raising or lowering operations and allows to hold load in place
Working Load, lbs 310
Lifeline Cable Galvanized, Stainless Steel
Cable Diameter, in. 3/16
Length of Cable, ft. 50 - 100
Weight, lbs. 36
Locking Speed, ft./sec. 4-5
MSE Personnel Winch is a universal attachment used with the following Confined Space Work & Rescue systems:
